IRS

Due to the rod-shaped design, Elstein IRS ceramic emitters are ideally suited for linear heating tasks.

An example of linear heating tasks can be found in the wood industry, where IRS rod heaters are used to preheat edge strips.

IRS series heaters have one mounting socket on each side, with which they can be fixed to a mounting profile with fixing springs. They are designed for operating temperatures of up to 750 ° C. With the help of mounting profiles, area outputs of up to 72.0 kW/m² can be achieved.

Elstein IRS rod heaters are standardly available in two designs and cover the power range from 200 W to 600 W.

Standard Version

  • operating voltage 230 V

  • leads 60 mm

  • two mounting sockets

  • two fixing springs

  • UR/UL certificate for many variants

Variants

  • special wattages

  • special voltages

  • extended leads

  • power leads with ring terminals

3D-Ansicht IRS
On larger screens a 3D view of the product ist available here.

Technical data

Performance

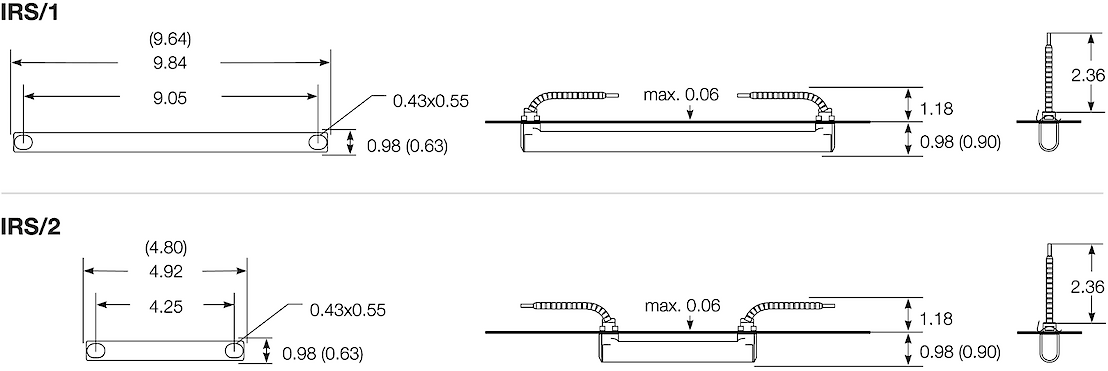

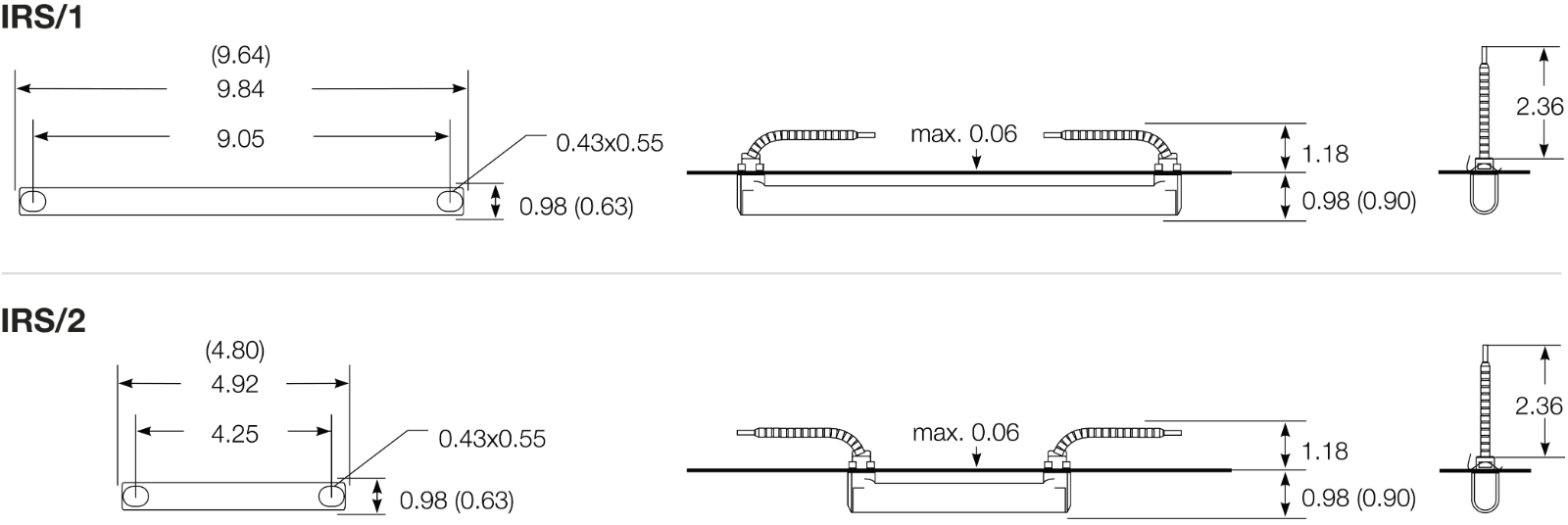

Dimensions

Thermocouple Heater

  • integrated thermocouple type K (NiCr-Ni)
  • description T-IRS | T-IRS/2
  • TC leads 100 mm

Consideration

The power can be controlled by using thermocouple heaters with TRD temperature controllers, TSE thyristor switching units and other accessories.

IR heating panels can be assembled using mounting profiles MPO.

The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.

Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.

Subject to technical modifications of the products. Products can differ from illustration. Mounting and products dimensions in mm (metric).
